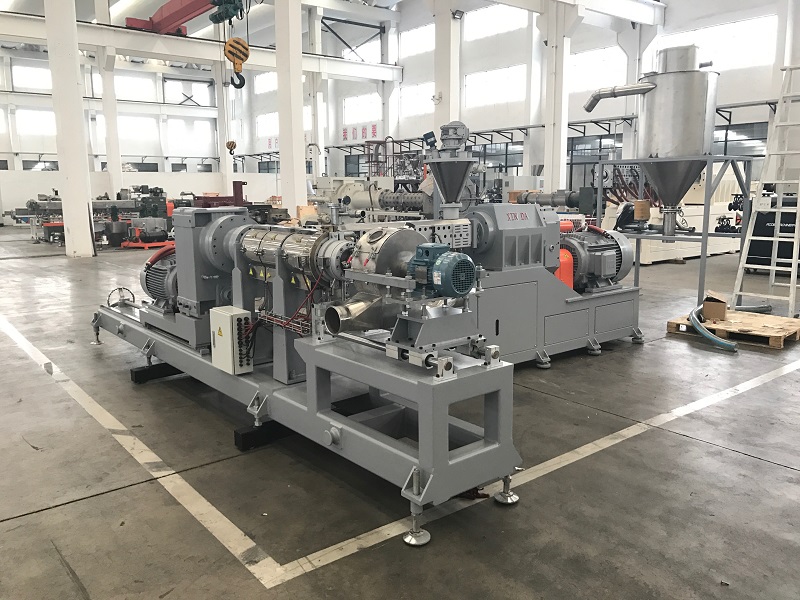

Concentrates Masterbatch Compounding Extruder And Pelletizing Line

  • Concentrates Masterbatch Compounding Extruder And Pelletizing Line
  • Concentrates Masterbatch Compounding Extruder And Pelletizing Line
  • Concentrates Masterbatch Compounding Extruder And Pelletizing Line
  • Concentrates Masterbatch Compounding Extruder And Pelletizing Line

Concentrates Masterbatch Compounding Extruder And Pelletizing Line

    Payment Type: L/C,T/T,Money Gram,Western Union
    Terms of Trade: FOB,EXW
    Min. Order: 1 Piece/Pieces
    Delivery Time: 60 Days
    Packaging: Wood Box and Pallet
    Productivity: 5-1800KG/H
    Brand: XINDA
    Transportation: Ocean,Land,Air
    Place of Origin: Jiangsu,China
    Supply Ability: 1000
    Certificate: ISO9001,CE,SGS
    HS Code: 84772010
    Port: SHANGHAI,QINGDAO,NINGBO

Basic Info

Model No.: SJW

Product Description

Concentrates Masterbatch Compounding Extruder And Pelletizing Line

compounding system

Short Description:

  • Application:Filler Masterbatches,Cable&wire compounding,PVC Compounding,Hot-melt adhesive,ect
  • Screw Design:Single & Double Screw
  • Screw L/D Ratio:28-51mm
  • Montor Brand:SIEMENS Brand
  • Process Type:Compounding&kneading&Extruder&Pelletizing
  • Finished Products:Any plastic granules
  • Cutting System:Water strand pelletizing, Hot die face cutting, Water ring pelletizing, Under water pelletizing, Dry strands pelletizing, etc.
  • Motor power:220-330kw
  • Automatic:Full automatic
  • Feeding System:Weightless Vacuum Feeding System
  • Certification:ISO9001,SGS,CE,ect


  • Working Principle

    co-kneader


    Co Kneader

    1

    2

    3

    4


    Application for Product

    • PVC compounding pelletizing
    • Shoe sole compounds
    • Wire&cable compounds(XLPE,HFFR,Semi-conductive compounds,etc)
    • Concentrated color masterbatch
    • Rubber,Final-batch rubber,Master batch,Mixed compound
    • Elastomers
    • Bio-degradable compounds
    • Metal injection molding

    Coperion Twin Screw Extruder

    ApplicationApplication 1


    Model Reference

    (1)SJW(M)--Melt pump is installed between the main extruder and the die. The benefits of melt pumps for extrusion operations includes the elimination of surging and) Other fluctuations, reduction of inconsistent melt temperatures, high pressures at lower product temperatures, compensation for the pumping or mixing capacity of the extruder, possibly reduced start-up times, and reduction of energy required by the extruder

    Used Twin Screw Extruder

    Application:
    --Color masterbatch/ Concentrates
    --High loading filler masterbatch
    --Hot-melt adhesive
    --Engineering plastics compounding
    --Engineered elastomers



    Model

    SJW-45(M)

    SJW-70(M)

    SJW-100(M)

    SJW-140(M)

    Screw Diameter (MM)

    45

    70

    100

    140

    Length Diameter Ratio

    15-25

    15-25

    15-25

    15-25

    Main Motor Power (KW)

    15-30

    55-75

    90-132

    160-220

    Max. Screw Speed (RPM)

    500

    500

    500

    500

    Reference Output (KG/HOUR)

    40-50

    150-200

    300-400

    800-1000


    (2)SJW(C)--The cascade type of Co-Kneader compounding line is consisted of Co-Kneader main machine and another large size single screw extruder. The stock will fall into the second stage single screw extruder after fully dispersed and distributed in Co-Kneader. It will ensure the materials are processed at lower temperature with the stable extruding The whole process is divided into two parts. Co-Kneader is in charge of kneading while the second stage single screw is focusing on extruding The cascade system is very helpful to achieve the better final quality.


    Application:

    --PVC compounding pelletizing
    --Shoe sole compounds
    --Wire cable compounds (XLPE, HFFR, Semi-conductive compounds, etc)
    --Concentrated color masterbatch
    --Rubber, Final-batch rubber, Master batch, Mixed compound
    --Elastomers
    --Bio-degradable compounds
    --Metal injection molding


    Model

    SJW-45(C)

    SJW-70(C)

    SJW-100(C)

    SJW-140(C)

    SJW-200(C)

    Screw Diameter (MM)

    45

    70

    100

    140

    200

    Length Diameter Ratio

    20~25

    20~25

    20~25

    20~25

    20~25

    Main Motor Power (KW)

    15~30

    55~75

    90~132

    160~300

    350~550

    Second-stageScrew Diameter (MM)

    60

    120

    150

    200

    280

    Second-stage L/D

    7~8

    7~8

    7~8

    7~8

    7~8

    Second-stage Power (KW)

    15~22

    37~45

    55~75

    90~110

    132~160

    Max.Screw Speed (RPM)

    500

    500

    500

    500

    500

    Reference Output (KG/HOUR)

    40~70

    150~250

    300~500

    800~1200

    1900~3600



    (3)SJW(T)--With the special working principle and shorter L/D ratio of XINDA Co-Kneader enjoys wide application in the field of thermoset plastics compounds and powder coating. Thermocouples can be mounted in drilled kneading pins at various different points along the process section to get the direct contact with the melt. The combination of a liquid heating and cooling system and an extremely precise monitoring of the melt

    temperature makes Co-Kneader a very successful solution in thermoset plastics compounds and powder coating toner.


    Application:
    --Thermoset plastics
    --Powder coating and toner
    --Bakelite molding compounds

    --Polymer: epoxy, acrylic, urethane, polyster, etc


    Model

    SJW-45(T)

    SJW-70(T)

    SJW-100(T)

    SJW-140(T)

    SJW-200(T)

    Screw Diameter (MM)

    45

    70

    100

    140

    200

    Length Diameter Ratio

    7-15

    7-15

    7-15

    7-15

    7-15

    Main Motor Power (KW)

    15-30

    55-75

    90-132

    160-220

    350-450

    Max. Screw Speed (RPM)

    500

    500

    500

    500

    500

    Reference Output (KG/HOUR)

    40-100

    100-400

    300-600

    500-1000

    1000-2000



    Product Description

    SJW(C)


    About factory

    2222

    Development History

    Certification

    ISO9001certification


    Customers list

    Custom List


    Exhibition and Worldwidely


    clients &agent



    JIANGSU XINDA TECH LIMITED




    FACTORY


    XINDA INTRODUCTION

    Manufacture compounding extruder since 1996

    25 years`experience on plastic compounding

    2500 compounding lines running in 48 countries

    Birthplace of Co-Kneader in China

    Patented clamshell barrel twin screw extruder

    Over 40000 sqm manufacturing plant


    Develop History

    11


    History


    Xinda Client & Agent Worldwide

    11

    clients &agent 1

    Customer List

    11

    customs list
